What a solar generator is, and how one actually works

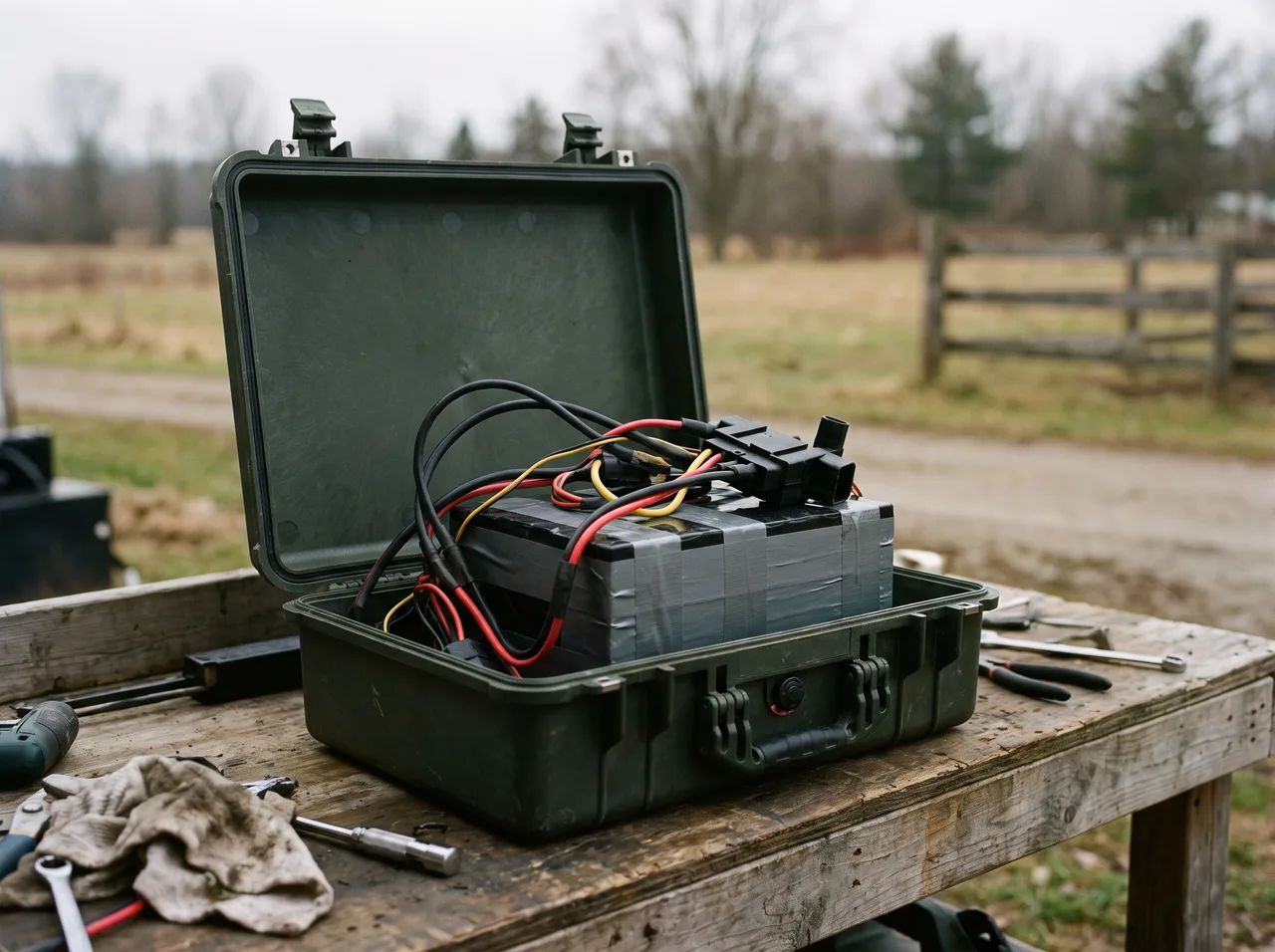

What is inside the box

• Battery cells. Where the energy lives. Most current units use LiFePO4 chemistry, which manufacturers rate for thousands of charge cycles, against roughly hundreds for the older NMC chemistry. Capacity is quoted in watt hours. What that chemistry actually is, why a "12 volt" LiFePO4 battery is really 12.8 volts, and the three limits worth knowing are covered in LiFePO4 explained.
• Inverter. Converts stored DC into the 120V AC your appliances expect. Its continuous rating decides the biggest load you can run, and its surge rating decides whether motors and compressors can start. Quality units output a pure sine wave, which sensitive electronics and medical devices need.
• Charge controller. Regulates incoming solar power so the panels can be plugged straight in. In a do-it-yourself setup you would buy and wire this separately; here it is already inside, which is most of what you are paying for in convenience.
• Ports and management. AC sockets, USB, 12V and often an RV outlet, plus the battery management system that protects the cells from overcharge, deep discharge and heat.

How does a solar generator work, step by step

1. Energy arrives as DC. From panels, a wall outlet or a car socket. Panels produce DC directly; wall charging converts household AC to DC on the way in.
2. The charge controller regulates it. Panel output swings with sun angle and cloud, so the controller conditions it into something the cells can safely accept. MPPT controllers track the panel's most productive operating point, which is why they recover more on an imperfect day than simpler designs.
3. The battery stores it. This is the only place energy is held, and its watt hour rating is the honest measure of how much you have.
4. The inverter converts on demand. Plug in an appliance and stored DC becomes household AC at that instant. Some of the energy is lost as heat in this conversion, which is why usable capacity is below rated capacity.
5. Panels refill it while you use it. In good sun the incoming power offsets what you are drawing, which is what makes a unit sustainable off-grid rather than simply a large battery you spend down.

Concrete numbers help. On the Grid Doctor 3300 we cover, that chain is a 2,048Wh battery, a 3,300W continuous and 6,600W surge pure sine inverter, solar input capped at 1,000W through an MPPT controller, and AC recharge of up to 1,800W. Across this site we treat inverter losses as 10 to 15 percent, so plan on roughly 85 percent of any rated capacity actually reaching an AC appliance.

Why the name is misleading

A fuel generator makes electricity while it runs, converting petrol or propane into power on demand, and it will keep doing that for as long as you feed it. A solar generator has a fixed amount of energy banked inside it and hands that back until it is empty. They solve different halves of the same problem, which our power station vs generator comparison works through in detail.

This is also why the marketing phrase "unlimited power" should always make you suspicious. The battery has a number on it, the panels have a number on them, and the weather decides how often the second number is achieved.

What a solar generator is not

• Not rooftop solar. A grid-tied home system shuts down in an outage unless it has its own battery and transfer switch, for the safety of utility workers. A portable unit is independent, which is exactly why it keeps working.
• Not a power bank. Power banks output USB-level DC for phones. These units run household AC appliances, which is a different order of capacity and a different price.
• Not a whole-home replacement at consumer prices. Most units in this class are 120V only, so 240V loads such as central air conditioning, well pumps and electric ranges sit outside their scope regardless of capacity.

The three numbers that actually describe one

1. Capacity in watt hours: how much energy it holds, so how long it lasts.
2. Continuous inverter output in watts: the biggest load it can run at all.
3. Solar input in watts: how quickly the sun can refill it, which decides whether it loops indefinitely or simply runs down more slowly.

Put your own appliances against those numbers in our what size solar generator do I need calculator.

If the load you care about is the kitchen, we work that case through in solar generator for a refrigerator. And if the real question is whether the category earns its price at all, that is the job of our are solar generators worth it guide, with the current picks on the solar generator hub.
